WEEK3 : NLP in Tensorflow (LSTM, Text CNN)

추가적으로 알게 된 사실

• image보다 text data에서 overfitting되기 쉽다.
• 왜냐하면 validation data에는 train에 존재하지 않는 vocabulary가 다수 존재하기 때문이다.
• train에 없지만 validation에 있는 데이터는 overfitting으로 이어진다.





RNN

www.coursera.org/lecture/nlp-sequence-models/deep-rnns-ehs0S

Deep RNNs - Recurrent Neural Networks | Coursera



LSTM

www.coursera.org/lecture/nlp-sequence-models/long-short-term-memory-lstm-KXoay

Long Short Term Memory (LSTM) - Recurrent Neural Networks | Coursera

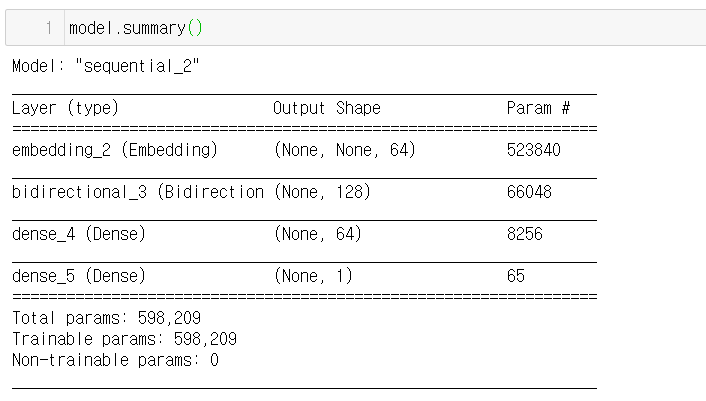

1-layer LSTM

model = tf.keras.models.Sequential([
    tf.keras.layers.Embedding(vocab_size, 64),
    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(64)),
    tf.keras.layers.Dense(64, activation='relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')
])

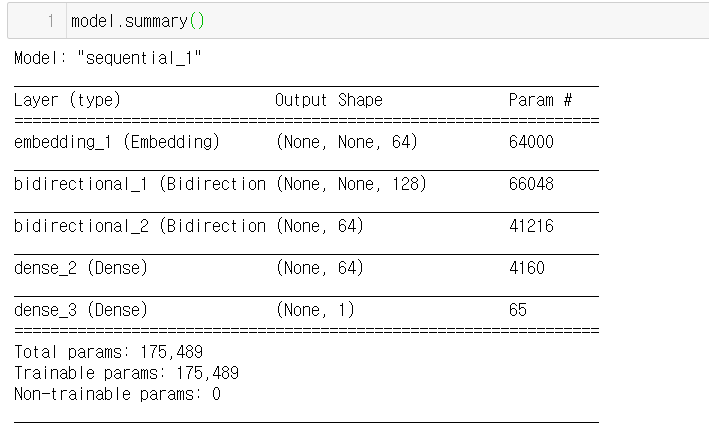

2-layer LSTM

• 첫 번째 LSTM layer에서 return_sequences=True 해주어야 한다.

model = tf.keras.Sequential([
    tf.keras.layers.Embedding(vocab_size, 64),
    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(64, return_sequences=True)),
    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(32)),
    tf.keras.layers.Dense(64, activation='relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')
])

Text CNN

• Conv1D 이용해 text convolution 할 수 있다. (LSTM에 비해 빠르다는 장점이 있다)

model = tf.keras.Sequential([
    tf.keras.layers.Embedding(vocab_size, embedding_size, input_length=max_length),
    tf.keras.layers.Conv1D(128, 5, activation='relu'), # 128: 필터의 개수, 5: kernel_size
    tf.keras.layers.GlobalAveragePooling1D(),
    tf.keras.layers.Dense(24, activation='relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')
])





Example

import json
import tensorflow as tf
import csv
import random
import numpy as np

from tensorflow.keras.preprocessing.text import Tokenizer
from tensorflow.keras.preprocessing.sequence import pad_sequences
from tensorflow.keras.utils import to_categorical
from tensorflow.keras import regularizers


embedding_dim = 100
max_length = 16
trunc_type='post'
padding_type='post'
oov_tok = "<OOV>"
training_size= 160000
test_portion=.1

corpus = []

!wget --no-check-certificate \
    https://storage.googleapis.com/laurencemoroney-blog.appspot.com/training_cleaned.csv \
    -O /tmp/training_cleaned.csv

num_sentences = 0

with open("/tmp/training_cleaned.csv") as csvfile:
    reader = csv.reader(csvfile, delimiter=',')
    for row in reader:
      # Your Code here. Create list items where the first item is the text, found in row[5], and the second is the label. Note that the label is a '0' or a '4' in the text.
      # When it's the former, make your label to be 0, otherwise 1.
      # Keep a count of the number of sentences in num_sentences
        list_item=[]
        # YOUR CODE HERE
        text = row[5]
        label = 0 if row[0] == "0" else 1
        list_item.append(text)
        list_item.append(label)
        corpus.append(list_item)
        num_sentences = num_sentences + 1

sentences=[]
labels=[]
random.shuffle(corpus)
for x in range(training_size):
    sentences.append(corpus[x][0])
    labels.append(corpus[x][1])

tokenizer = Tokenizer()
tokenizer.fit_on_texts(sentences)

word_index = tokenizer.word_index
vocab_size=len(word_index)

sequences = tokenizer.texts_to_sequences(sentences)
padded = pad_sequences(sequences, maxlen=max_length, padding=padding_type, truncating=trunc_type)

split = int(test_portion * training_size)

test_sequences = padded[0:split]
training_sequences = padded[split:training_size]
test_labels = labels[0:split]
training_labels = labels[split:training_size]

# Note this is the 100 dimension version of GloVe from Stanford
# I unzipped and hosted it on my site to make this notebook easier
!wget --no-check-certificate \
    https://storage.googleapis.com/laurencemoroney-blog.appspot.com/glove.6B.100d.txt \
    -O /tmp/glove.6B.100d.txt
embeddings_index = {};
with open('/tmp/glove.6B.100d.txt') as f:
    for line in f:
        values = line.split();
        word = values[0];
        coefs = np.asarray(values[1:], dtype='float32');
        embeddings_index[word] = coefs;

embeddings_matrix = np.zeros((vocab_size+1, embedding_dim));
for word, i in word_index.items():
    embedding_vector = embeddings_index.get(word);
    if embedding_vector is not None:
        embeddings_matrix[i] = embedding_vector;

model = tf.keras.Sequential([
    tf.keras.layers.Embedding(vocab_size+1, embedding_dim, input_length=max_length, weights=[embeddings_matrix], trainable=False),
    # YOUR CODE HERE - experiment with combining different types, such as convolutions and LSTMs
    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(64, return_sequences=True)),
    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(64)),
    tf.keras.layers.Dense(10, activation='relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')

])
model.compile(loss='binary_crossentropy', optimizer='adam', metrics=['acc'])
model.summary()

training_padded = np.array(training_sequences)
training_labels = np.array(training_labels)
testing_padded = np.array(testing_sequences)
testing_labels = np.array(testing_labels)

num_epochs = 50
history = model.fit(training_sequences, training_labels, epochs=num_epochs, validation_data=(test_sequences, test_labels), verbose=2)

print("Training Complete")



or TextCNN model

model = tf.keras.Sequential([
    tf.keras.layers.Embedding(vocab_size+1, embedding_dim, input_length=max_length, weights=[embeddings_matrix], trainable=False),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Conv1D(64, 5, activation='relu'),
    tf.keras.layers.MaxPooling1D(pool_size=4),
    tf.keras.layers.LSTM(64),
    tf.keras.layers.Dense(1, activation='sigmoid')
])
model.compile(loss='binary_crossentropy',optimizer='adam',metrics=['accuracy'])
model.summary()
